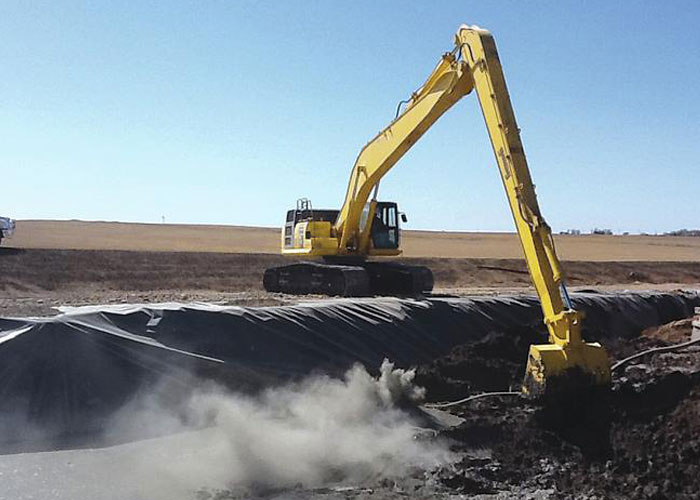

PC210LC-11 SLF
Built to extend beyond
- Horsepower: 165 HP @ 2,000 rpm
- Operating weight: 55,029 - 55,646 lbs.
- Bucket capacity: 0.6 yd³
Specifications
Engine
| Model | Komatsu SAA6D107E-3* |
| Type | Water-cooled, 4-cycle, direct injection |
| Aspiration | Komatsu Variable Geometry Turbocharged, aftercooled, cooled EGR |
| Number of cylinders | 6 |
| Bore | 4.21 in |
| Stroke | 4.88 in |
| Piston displacement | 408 in³ |
| Horsepower: | |
| ISO 9249 / SAE J1349 - Net | 165 HP |
| Fan at maximum speed - Net | 159 HP |
| Rated rpm | 2,000 rpm |
| Fan drive method for radiator cooling | Mechanical with viscous fan clutch |
| Governor | All-speed control, electronic |
| *EPA Tier 4 Final emissions certified |
Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves
| Number of selectable working modes | 6 |
| Main pump: | |
| Type | Variable displacement piston type |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Maximum flow | 125.5 US gpm |
| Supply for control circuit | Self-reducing valve |
| Hydraulic motors: | |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Relief valve setting: | |
| Implement circuits | 5,400 psi |
| Travel circuit | 5,400 psi |
| Swing circuit | 4,190 psi |
| Pilot circuit | 470 psi |
| Hydraulic cylinders: | |
| Number of cylinders | Bore x Stroke x Rod Diameter |
| Boom / 2 | 5.1 x 52.5 x 3.5 in |
| Arm / 1 | 5.3 x 58.7 x 3.7 in |
| Bucket / 1 | 4.5 x 44.1 x 3.2 in |
Drives & Brakes
| Steering control | Two levers with pedals |
| Drive method | Hydrostatic |
| Maximum drawbar pull | 45,349 lbs. |
| Gradeability | 70%, 35° |
| Maximum travel speed: (Auto-Shift) | |
| High | 3.4 mph |
| Mid | 2.5 mph |
| Low | 1.9 mph |
| Service brake | Hydraulic lock |
| Parking brake | Mechanical disc brake |
Swing System
| Drive method | Hydrostatic |
| Swing reduction | Planetary gear |
| Swing circle lubrication | Grease-bathed |
| Service brake | Hydraulic lock |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed | 12.4 rpm |
| Swing torque | 49,907 ft.-lbs. |
Undercarriage
| Center frame | X-frame | |
| Track frame | Box-section | |
| Seal of track | Sealed track | |
| Track adjuster | Hydraulic | |
| Number of shoes | 49 each side | |
| Number of carrier rollers | 2 each side | |
| Number of track rollers | 9 each side |
Sound Performance
| Exterior – ISO 6395 | 100 dB(A) |
| Operator – ISO 6396 | 66 dB(A) |
Coolant & Lubricant Capacity (Refilling)
| Fuel tank | 105.7 US gal |
| Coolant | 8.1 US gal |
| Engine | 6.1 US gal |
| Final drive, each side | 1.3 US gal |
| Swing drive | 1.7 US gal |
| Hydraulic tank | 34.9 US gal |
| Hydraulic system | 61.8 US gal |
| DEF tank | 6.1 US gal |
Operating Weight (Approximate)
Operating weight includes 18 ft. 8 in one-piece boom, 9 ft. 7 in arm, SAE heaped 1.57 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Triple-Grouser Shoes | Operating Weight: | Ground Pressure |
| 28 in | 53,265 lbs. | 6.7 psi |
| 31.5 in | 53,882 lbs. | 5.9 psi |
