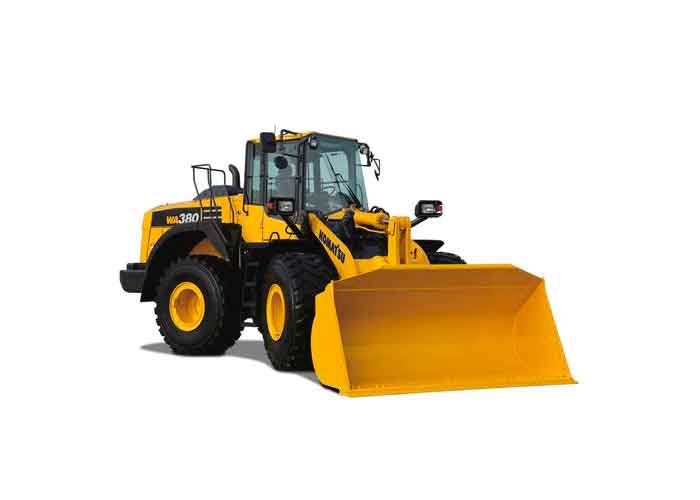

WA380-8
When you need one wheel loader to handle multiple jobs
- Horsepower: 191 HP @ 2,100 rpm
- Operating weight: 40,532 - 41,932 lbs.
- Bucket capacity: 3.5 - 4.3 yd³
Specifications
Engine
| Model | Komatsu SAA6D107E-3* |
| Type | Water-cooled, 4-cycle |
| Aspiration | Turbo-charged, after-cooled |
| Number of cylinders | 6 |
| Bore x Stroke | 4.21 x 4.88 in |
| Piston displacement | 408 in3 |
| Govenor | All-speed, electronic |
| Horsepower: | |
| SAE J1995 - Gross | 192 HP |
| ISO 9249 / SAE J1349 - Net | 191 HP |
| Rated rpm | 2,100 rpm |
| Fan drive method for radiator cooling | Hydraulic |
| Fuel system | Direct injection |
| Lubrication system: | |
| Method | Gear pump, force-lubrication |
| Filter | Full-flow type |
| Air cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
*EPA Tier 4 Final emissions certified
Transmission
| Torque converter | 3-elements, 1-stage, 2-phase | |
| Transmission | Automatic, full-powershift, counter-shaft type | |
| Travel speed: (Measured with 23.5-25 tires) | Forward | Reverse |
| 1st | 4.1 mph | 4.4 mph |
| 2nd | 7.3 mph | 7.7 mph |
| 2nd (Lock-up clutch ON) | 7.7 mph | 8.3 mph |
| 3rd | 13.0 mph | 13.9 mph |
| 3rd (Lock-up clutch ON) | 13.9 mph | 15.0 mph |
| 4th | 22.4 mph | 24.0 mph |
| 4th (Lock-up clutch ON) | 23.3 mph | 23.3 mph |
Axles & Final Drive
| Drive system | Four-wheel drive |
| Front | Fixed, semi-floating |
| Rear | Center-pin support, semi-floating, 26° total oscillation |
| Reduction gear | Spiral bevel gear |
| Differential gear | Conventional type |
| Final reduction gear | Planetary gear, single reduction |
Brakes
| Service brakes | Hydraulically actuated, wet disc brakes actuate on four wheels |
| Parking brake | Wet disc brake |
| Emergency brake | Parking brake is commonly used |
Steering System
| Type | Articulated type, full-hydraulic power steering |
| Steering angle | 35° (40° to max end stop) |
| Minimum turning radius at the center of outside tire | 20 ft. 9 in |
Hydraulic System
| Steering system: | |
| Hydraulic pump | Piston type |
| Capacity at rated rpm | 36.2 US gpm |
| Relief valve setting | 3,555 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type. |
| Number of cylinders | 2 |
| Bore x stroke | 3.0 x 17.4 in |
| Loader control: | |
| Hydraulic pump | Piston pump |
| Capacity | 54.15 US gpm |
| Relief valve setting | 4,550 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type. |
| Number of cylinders: | Bore x Stroke: |
| Boom cylinder / 2 | 5.1 x 28.1 in |
| Bucket cylinder / 1 | 5.9 x 21.1 in |
| Control valve | 2-spool type |
| Control positions: | |
| Boom | Raise, hold, lower, and float |
| Bucket | Tilt-back, hold, and dump |
| Hydraulic cycle time (rated load in bucket): | |
| Raise | 5.9 s |
| Dump | 1.8 s |
| Lower (Empty) | 3.3 s |
Service Refill Capacities
| Cooling system | 16.0 US gal |
| Fuel tank | 79.3 US gal |
| Engine | 6.1 US gal |
| Hydraulic system | 37.5 US gal |
| Axle (each front and rear) | 10.6 US gal |
| Torque converter and transmission | 14.3 US gal |
| DEF tank | 9.5 US gal |
